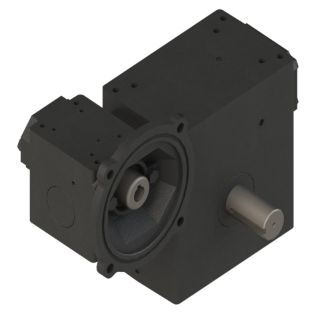

Actual Product May Vary From Image

0230-32188 HUB

Name: 0230-32188 HUB
SKU: 0230-32188 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-32188 3800 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.34 hp Input, 400:1 Gear, 4.38 rpm Maximum Output, 7883 in-lb Output Torque Rating

Manufacturer part number: 0230-32188

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3800, 400:1 Gear Ratio, 1.34 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.5 in Dia x 3.88 in L Output, 4.38 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 7883 in-lb Output, 3-3/4 in Centre Distance, 3/8 x 3/16 in Output Keyway, 51.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 13.38 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Dimensions:	13.38 in W
Efficiency:	51.5 %
Gear Ratio:	400:1
Horsepower:	1.34 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	4.38 rpm
Output Size:	1.5 in Dia x 3.88 in L
Output Type:	Shaft
Series:	3800
Torque Rating:	7883 in-lb Output
