0230-32370 HUB

Name: 0230-32370 HUB
Brand: Hub City
SKU: 0230-32370 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-32370

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

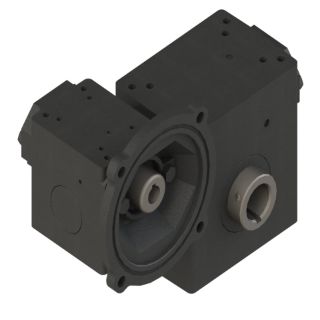

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3800, 600:1 Gear Ratio, 0.66 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 2.188 in Dia Output, 2.92 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9913 in-lb Output, 3-3/4 in Centre Distance, 43.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Country of Origin:	US
Efficiency:	43.1 %
Gear Ratio:	600:1
Horsepower:	0.66 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	2.92 rpm
Output Size:	2.188 in Dia
Output Type:	Hollow Bore
Series:	3800
Torque Rating:	9913 in-lb Output
