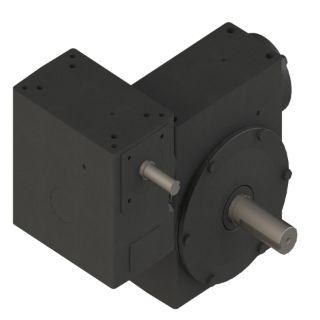

Picture of 0230-37122 HUB
Actual Product May Vary From Image

0230-37122 HUB

Hub City® PowerCubeX® 0230-37122 4500 Double Reduction Right Angle Single Output Worm Gear Reducer, Shaft Input, Shaft Output, 7.13 hp Input, 75:1 Gear, 23.3 rpm Maximum Output, 12920 in-lb Output Torque Rating
Manufacturer part number: 0230-37122
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Single Output

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Single Output, Series: 4500, 75:1 Gear Ratio, 7.13 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 1.625 in Dia x 4.18 in L Output, 23.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 12920 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 67 % Efficiency, Conventional Oil Lubrication, Cast Iron, 14-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and Increased efficiency
  • Alloy shafting

Specifications

Centre Distance:4-1/2 in
Dimensions:14-1/2 in W
Efficiency:67 %
Gear Ratio:75:1
Horsepower:7.13 hp Input
Input Maximum Speed:1750 rpm
Input Size:0.875 in Dia x 2.38 in L
Input Type:Shaft
Keyway Size:3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:23.3 rpm
Output Size:1.625 in Dia x 4.18 in L
Output Type:Shaft
Series:4500
Torque Rating:12920 in-lb Output
