0230-39837 HUB

Name: 0230-39837 HUB
Brand: Hub City
SKU: 0230-39837 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-39837

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle Single Output

Description

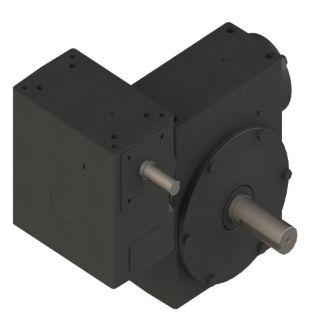

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Single Output, Series: 5200, 2000:1 Gear Ratio, 0.79 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 1.75 in Dia x 4.47 in L Output, 0.88 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 20050 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 35.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 15.62 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Dimensions:	15.62 in W
Efficiency:	35.2 %
Gear Ratio:	2000:1
Horsepower:	0.79 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.88 rpm
Output Size:	1.75 in Dia x 4.47 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	20050 in-lb Output
