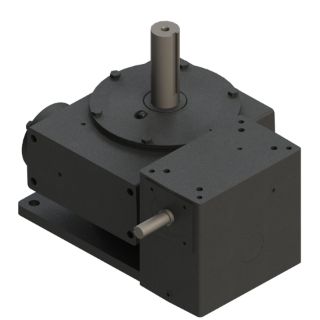

Actual Product May Vary From Image

0230-40323 HUB

Name: 0230-40323 HUB
SKU: 0230-40323 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40323 5200 Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Shaft Output, 7.73 hp Input, 100:1 Gear, 17.5 rpm Maximum Output, 18530 in-lb Output Torque Rating

Manufacturer part number: 0230-40323

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 5200, 100:1 Gear Ratio, 7.73 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 2 in Dia x 4-1/4 in L Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 18530 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 66.5 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	66.5 %
Gear Ratio:	100:1
Horsepower:	7.73 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	2 in Dia x 4-1/4 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	18530 in-lb Output
