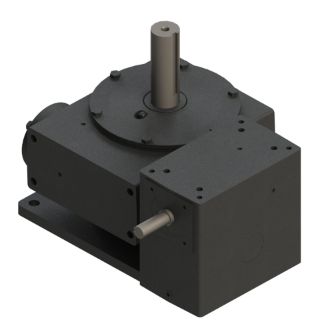

Actual Product May Vary From Image

0230-40350 HUB

Name: 0230-40350 HUB
SKU: 0230-40350 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40350 5200 BR CL Output Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Shaft Output, 2.18 hp Input, 600:1 Gear, 2.92 rpm Maximum Output, 22670 in-lb Output Torque Rating

Manufacturer part number: 0230-40350

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

BR CL Output Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, BR CL Output Double Reduction Right Angle, Series: 5200, 600:1 Gear Ratio, 2.18 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 2 in Dia x 4-1/4 in L Output, 2.92 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 22670 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 48.2 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	48.2 %
Gear Ratio:	600:1
Horsepower:	2.18 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	2.92 rpm
Output Size:	2 in Dia x 4-1/4 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	22670 in-lb Output
