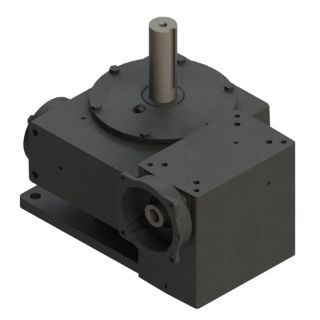

Actual Product May Vary From Image

0230-40363 HUB

Name: 0230-40363 HUB
SKU: 0230-40363 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40363 5200 AL AR Output Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 7.73 hp Input, 100:1 Gear, 17.5 rpm Maximum Output, 18530 in-lb Output Torque Rating

Manufacturer part number: 0230-40363

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

AL AR Output Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, AL AR Output Double Reduction Right Angle, Series: 5200, 100:1 Gear Ratio, 7.73 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 2 in Dia x 4-1/4 in L Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 18530 in-lb Output, 5.16 in Centre Distance, 1/2 x 1/4 in Output Keyway, 66.5 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	66.5 %
Gear Ratio:	100:1
Horsepower:	7.73 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	2 in Dia x 4-1/4 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	18530 in-lb Output
