0230-40485 HUB

Name: 0230-40485 HUB
Brand: Hub City
SKU: 0230-40485 HUB
Availability: OutOfStock

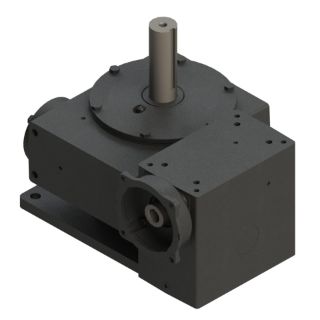

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-40485

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

BL CR Output Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, BL CR Output Double Reduction Right Angle, Series: 5200, 200:1 Gear Ratio, 4.35 hp Input, C-Face Quill Input, Shaft Output, 1-1/8 in Dia Input, 2 in Dia x 4-1/4 in L Output, 8.75 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 19380 in-lb Output, 5.16 in Centre Distance, 1/2 x 1/4 in Output Keyway, 61.9 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	61.9 %
Gear Ratio:	200:1
Horsepower:	4.35 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	8.75 rpm
Output Size:	2 in Dia x 4-1/4 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	19380 in-lb Output
