023093 DOD

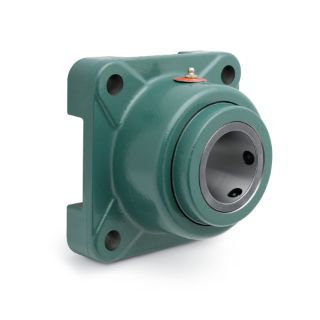

Picture of 023093 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
023093
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$309.18 / EA

Description

Specifications

Bearing Type:Tapered Roller
Bolt Diameter:0.3750
Bolt Diameter (Unit):INCH
Bore Length:2.7500
Bore Length (Unit):INCH
Dynamic Load Capacity:3450
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease XHP222
Housing Construction:Solid
Housing Dimensional Standard:Type E
Housing Material:Cast Iron
Housing Type:Four-Bolt Flange
Insert Material:Steel
Lubrication:Grease
Maximum Speed:4490
Maximum Speed (Unit):RPM
Seal Type:Triple-Lip Contact
Shaft Attachment:Setscrew
Shaft Diameter:1.1875
Shaft Diameter (Unit):INCH
Static Load Capacity:15760
Static Load Capacity (Unit):POUND_FORCE

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Measuring Units
Inch
Shaft Diameter
1 3/16 in
Type
4 Bolt Flange
