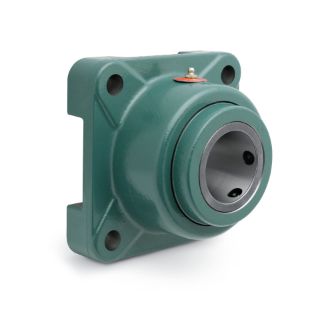

Picture of 023114 DOD
Actual Product May Vary From Image

023114 DOD

F4B-E-307R TYPE E-XTRA
Manufacturer: Dodge
Manufacturer part number: 023114
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$1,138.82

Product Details

Specifications

Bearing Type:Tapered Roller
Bolt Diameter:0.7500
Bolt Diameter (Unit):INCH
Bore Length:5.0000
Bore Length (Unit):INCH
Dynamic Load Capacity:17750
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease XHP222
Housing Construction:Solid
Housing Dimensional Standard:Type E
Housing Material:Cast Iron
Housing Type:Four-Bolt Flange
Insert Material:Steel
Lubrication:Grease
Maximum Speed:1640
Maximum Speed (Unit):RPM
Seal Type:Triple-Lip Contact
Shaft Attachment:Setscrew
Shaft Diameter:3.4375
Shaft Diameter (Unit):INCH
Static Load Capacity:108600
Static Load Capacity (Unit):POUND_FORCE

Resources

Tech BulletinEngineering DrawingInstallation
