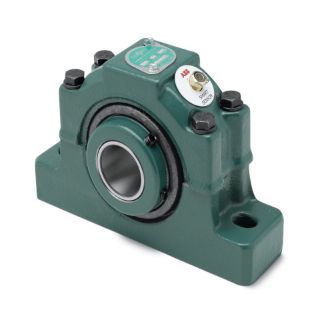

Picture of 023379 DOD

Actual Product May Vary From Image

023379 DOD

P2B-DI-108RE

Manufacturer: Dodge

Manufacturer part number: 023379

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$811.73

Qty:

Product Details

Specifications

Base to Center Height:	2.6300
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.6300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.8800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.3800
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3320
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	1.5000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	33000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-200,TS-300

Resources

Tech Bulletin Engineering Drawing Installation
