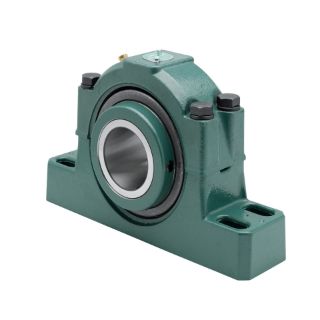

Picture of 023410 DOD

Actual Product May Vary From Image

023410 DOD

P4B-DI-400RE

Manufacturer: Dodge

Manufacturer part number: 023410

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$3,840.91

Qty:

Product Details

Specifications

Base to Center Height:	5.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	14.7500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	13.1200
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.0000
Bolt Width (Unit):	INCH
Bore Length:	6.2500
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1530
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	4.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	154000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-400,TS-500

Resources

Tech Bulletin Engineering Drawing Installation
