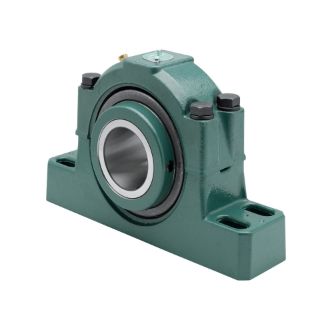

Picture of 023421 DOD

Actual Product May Vary From Image

023421 DOD

P4B-DI-700RE

Manufacturer: Dodge

Manufacturer part number: 023421

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$16,497.85

Qty:

Product Details

Specifications

Base to Center Height:	8.6250
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	1.1250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	29.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	21.6250
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.7500
Bolt Width (Unit):	INCH
Bore Length:	10.5000
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	790
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	7.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	574000
Static Load Capacity (Unit):	POUND_FORCE

Resources

Tech Bulletin Engineering Drawing Installation
