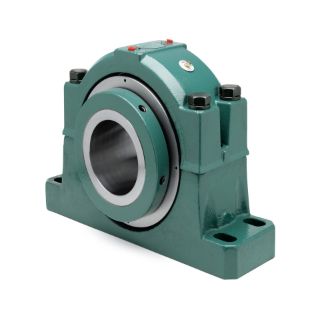

Actual Product May Vary From Image

023586 DOD

Name: 023586 DOD
Brand: Dodge
SKU: 023586 DOD
Price: 7,140.84 USD
Availability: OutOfStock

P4B534-TAF-600R

Manufacturer: Dodge

Manufacturer part number: 023586

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$7,140.84

Qty:

Product Details

Base to Center Height:	7.0600
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	1.0000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	21.6300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	19.0000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.2500
Bolt Width (Unit):	INCH
Bore Length:	9.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	915
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	6.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	354000
Static Load Capacity (Unit):	POUND_FORCE
