Actual Product May Vary From Image

023590 DOD

Name: 023590 DOD
Brand: Dodge
SKU: 023590 DOD
Price: 10,199.39 USD
Availability: OutOfStock

P4B538-TAF-700R

Manufacturer: Dodge

Manufacturer part number: 023590

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$10,199.39

Qty:

Product Details

Base to Center Height:	7.8800
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	1.2500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	24.3800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	21.6300
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.5000
Bolt Width (Unit):	INCH
Bore Length:	10.5000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron

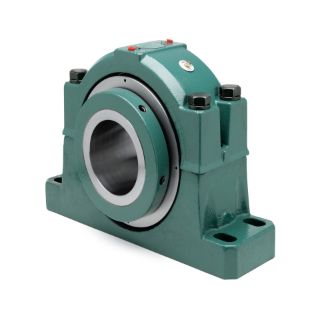

Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	790
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	7.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	574000
Static Load Capacity (Unit):	POUND_FORCE
