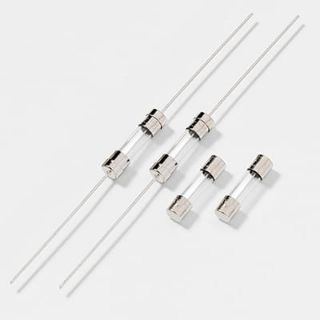

Picture of 0239002.VXEP LIT
Actual Product May Vary From Image

0239002.VXEP LIT

Littelfuse® Slo-Blo® 239002EP Time Delay Cartridge Fuse, 2 A, 250 VAC, 100 A at 250 VAC Interrupt, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 239002EP
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$6.90

Product Details

Brand Name

Littelfuse®

Type

Time Delay

Description

Littelfuse® Slo-Blo® Cartridge Fuse, Time Delay, Series: 239, 2 A, 250 VAC, 100 A at 250 VAC Interrupt, 2 min Response, Axial Lead Terminal, Through Hole Mount, Cartridge Body Type, Glass, 5 mm Dia x 20 mm L Body Size

Application

For use as supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

ANCE 248-1 and 248-14 | UL File No. E10480 | CSA File No. 29862 | CE Certified | ICC Certified | PSE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Lead-Free
  • 10 kA at 125 VAC, 100 A at 250 VAC interrupt rating
  • 4 hr at 100%, 1 hr at 135%, 2 min at 200% response time
  • 5 x 20 mm time lag glass body cartridge fuse designed to JL specification

Specifications

Amperage Rating:2 A
Body Size:5 mm Dia x 20 mm L
Body Type:Cartridge
Country of Origin:MX
Interrupt Rating:100 A at 250 VAC
Material:Glass
Mounting Type:Through Hole
Response Time:2 min
Series:239
Terminal Type:Axial Lead
Voltage Rating:250 VAC
