0239003.VXP LIT

Product Details

Manufacturer:
Manufacturer part number:
239003P
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Littelfuse®

Type

Fast Acting

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.

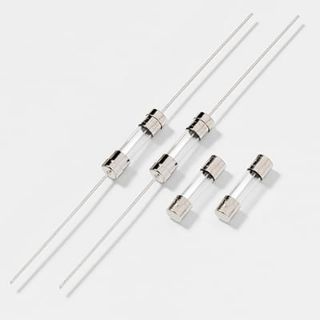

Littelfuse® POWR-GARD® Cartridge Fuse, Fast Acting, Series: 239, Indicating/Non-Indicating: Non-Indicating, 3 A, 250 VAC, 100 A Interrupt, Class: T, 4 hr, 1 hr, 2 min Response, Holder Mount, Cartridge Body, Glass, 5.2 mm Dia x 20 mm L Body Size

Application

For variable speed drives

Standards

UL 248-12 | UL 198M | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
  • 0.0487 ohms resistance
  • 129.51 I2T (A2 sec) nominal melting
  • -55 to 125 deg C operating temperature
  • 4 hrs minimum at 100%, 1 hr maximum at 135%, 2 min maximum at 200%
  • Nickel-plated brass cap, tin plated copper leads
  • 100 A at 250 VAC interrupting rating

Specifications

Amperage Rating:3 A
Body Size:5.2 mm Dia x 20 mm L
Body Type:Cartridge
Class:T
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 A
Material:Glass
Mounting Type:Holder
Response Time:4 hr, 1 hr, 2 min
Series:239
Voltage Rating:250 VAC

Products Specifications

Amperage Rating
3 A
Brand Name
Littelfuse
Type
Glass Body Cartridge Fuse
Voltage Rating
250 VAC
