0239.200VXP LIT

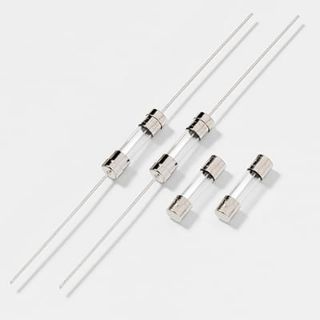

Littelfuse® POWR-GARD® 239.200P Time Delay Cartridge Fuse, 0.2 A, 250 VAC, 10 kA, Class RK5, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 239.200P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$5.56

Product Details

Brand Name

Littelfuse®

Type

Time Delay

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
Littelfuse® POWR-GARD® Cartridge Fuse, Time Delay, Series: 239, Indicating/Non-Indicating: Non-Indicating, 0.2 A, 250 VAC, 10 kA Interrupt, Class: RK5, 4 hr, 1 hr, 2 min Response, Holder Mount, Cartridge Body, Glass, 5.2 mm Dia x 20 mm L Body Size

Application

DC Circuits/Motors Applications

Standards

UL 248-12 | UL 198M | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
  • 3.8725 ohms resistance
  • 0.165 I2T (A2 sec) nominal melting
  • -55 to 125 deg C operating temperature
  • 4 hrs minimum at 100%, 1 hr maximum at 135%, 2 min maximum at 200%
  • Nickel-plated brass cap, tin plated copper leads
  • 10 kA at 125 VAC interrupting rating

Specifications

Amperage Rating:0.2 A
Body Size:5.2 mm Dia x 20 mm L
Body Type:Cartridge
Class:RK5
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Glass
Mounting Type:Holder
Response Time:4 hr, 1 hr, 2 min
Series:239
Voltage Rating:250 VAC
