0242 IDE

Name: 0242 IDE
Brand: Ideal Industries
SKU: 0242 IDE
Availability: OutOfStock

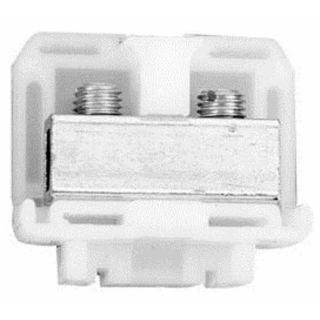

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

0242

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

BUCHANAN

Type

Heavy Duty

Description

BUCHANAN Terminal Block, Heavy Duty, Series: 200, 600 VAC, 85 A, 18 to 4 AWG Wire, 1/2 in Wire Strip Length, Channel Mount, Tubular Screw, 125 deg C, Nylon, 3.03 in L x 1.42 in W x 1.56 in H

Standards

CSA LR25557/E63810

Features

1/4 to 28 slotted headless screw type
Type 6/6 unfilled
Copper/copper alloy contact material
Steel plated screw material
7000 VAC 60 Hz breakdown voltage
470 to 385 V/mil thickness dielectric strength
0.01 to 0.35 UL high voltage arc testing (in/min)
1.5% water absorption (24 hr % weight gain)
94V-2 flammability
Resistant to aromatic hydrocarbons, strong alkalies chemical resistance
8 x 10^7 radiation resistance (ergs g-1 C)
138 circuits per 6 ft length
Three contact styles conservatively rated from 35 to 85 A per circuit
Two-way flat base models surface mount directly to the panel or snap-on miniature channel, dovetail base models mount on standard channel
Only one end section needed per block assembly
Readily identifiable circuits - mark directly on painted surface of block sections or use removable marking tape
Nylon housing for more rugged applications
Sections snap-fit with phenolic heavy duty, intermediate heavy duty and fuse blocks

Specifications

Amperage Rating:	85 A
Connection Type:	Tubular Screw
Country of Origin:	MX
Dimensions:	3.03 in L x 1.42 in W x 1.56 in H
Material:	Nylon
Mounting Type:	Channel
Series:	200
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC
Wire Size:	18 to 4 AWG
Wire Strip Length:	1/2 in
