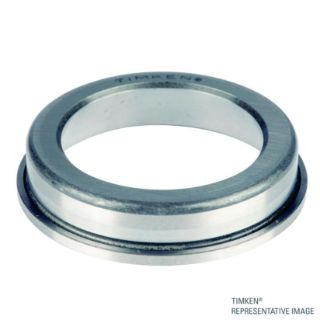

02420B-2 TKN

Tapered Roller Bearing Single Row Flanged Cup
Manufacturer: Timken
Manufacturer part number: 02420B-20024
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$167.08

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
Tapered Roller Bearing Single Row Flanged Cup | Imperial | 68.3 mm 2.7 in OD | 17.5 mm 0.7 in Width

Features

  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:Single Cup
Bearing Material:Steel
Bearing Type:Single Cup
Component (I/R; O/R assembly):Outer Ring
Flange Outside Diameter (in):2.8397
Flange Outside Diameter (mm):72.12838
Flange Thickness (in):0.1562
Flange Thickness (mm):3.96748
Load Rating UOM:LB
Material - Rolling Elements:Steel
Outer Diameter (in):2.6875
Outer Diameter (mm):68.2625
Outer Diameter Type:Straight OD
Outer Race Width (in):0.6875
Outer Race Width (mm):17.4625
Overall Width (in):0.6875
Overall Width (mm):17.4625
Precision class:Class 2 (Standard)
Raceway Style:Tapered Roller Bearing
Row Type:Single
