0243 IDE

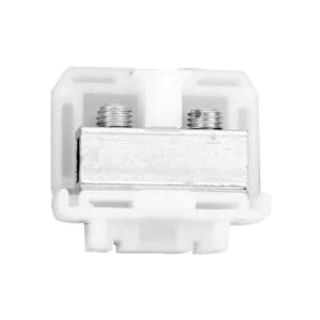

IDEAL® 0243 200 Heavy Duty Terminal Block, 600 VAC, 65 A, 18 to 6 AWG Wire, Channel Mount
Manufacturer: Ideal Industries
Manufacturer part number: 0243
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

IDEAL®

Type

Heavy Duty

Description

IDEAL® Terminal Block, Heavy Duty, Series: 200, 600 VAC, 65 A, 18 to 6 AWG Wire, 1/2 in Wire Strip Length, Channel Mount, Tubular Clamp, 125 deg C, Thermoplastic, 3.03 in L x 1.42 in W x 1.56 in H

Standards

CSA LR25557/E63810

Features

  • 1/4 to 28 slotted headless screw type
  • Type 6/6 unfilled
  • Copper/copper alloy contact material
  • Steel plated screw material
  • 7000 VAC 60 Hz breakdown voltage
  • 470 to 385 V/mil thickness dielectric strength
  • 0.01 to 0.35 UL high voltage arc testing (in/min)
  • 1.5% water absorption (24 hr % weight gain)
  • 94V-2 flammability
  • Resistant to aromatic hydrocarbons, strong alkalies chemical resistance
  • 8 x 10^7 radiation resistance (ergs g-1 C)
  • 138 circuits per 6 ft length
  • Three contact styles conservatively rated from 35 to 85 A per circuit
  • Two-way flat base models surface mount directly to the panel or snap-on miniature channel, dovetail base models mount on standard channel
  • Only one end section needed per block assembly
  • Readily identifiable circuits - mark directly on painted surface of block sections or use removable marking tape
  • Nylon housing for more rugged applications
  • Sections snap-fit with phenolic heavy duty, intermediate heavy duty and fuse blocks

Specifications

Amperage Rating:65 A
Connection Type:Tubular Clamp
Country of Origin:MX
Dimensions:3.03 in L x 1.42 in W x 1.56 in H
Material:Thermoplastic
Mounting Type:Channel
Series:200
Temperature Rating:125 deg C
Voltage Rating:600 VAC
Wire Size:18 to 6 AWG
Wire Strip Length:1/2 in
