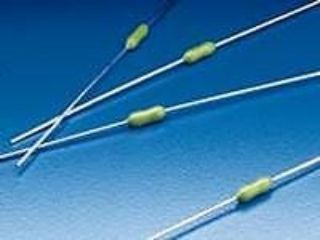

Littelfuse® PICO® II 0251003.MXL Small Standard Very Fast Acting Subminiature Fuse, 3 A, 125 VAC/VDC, 50/300 A Interrupt, Leaded Body
Manufacturer: Littelfuse
Manufacturer part number: 0251003.MXL
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.48

Product Details

Brand Name

Littelfuse®

Type

Small Standard Very Fast Acting

Description

The PICO® II very fast acting fuse is designed to meet an extensive array of performance characteristics in a space saving subminiature package.
Littelfuse® PICO® II Subminiature Fuse, Small Standard Very Fast Acting, Series: 0251, Non-Indicating, 3 A, 125 VAC/VDC, 50/300 A Interrupt, 4 ms Response, Axial Terminal, Through Hole Mounting, Leaded Body, Ceramic, 2.468 in W x 0.11 in H Body

Application

For flat panel display TV, LCD monitor, LCD backlight inverter, office machines, power supply, audio/video system, lighting system, medical equipment, electronic equipment and appliances

Standards

CSA File No. 29862 | Military Specification STD-202 Method 106 | cULus File No. E10480 | PSE File No. NBK200416-JP1021 | CCC File No. 2009010207366577 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Wide current rating range
  • Wide operating temperature range
  • Low temperature rerating
  • 50 A at 125 VAC, 300 A at 125 VDC interrupt rating
  • 4 hr at 100%, 1 s at 200%, 300 ms at 275%, 30 ms at 400%, 4 ms at 1000% response time

Specifications

Amperage Rating:3 A
Body Size:2.468 in W x 0.11 in H
Body Type:Leaded
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:50/300 A
Material:Ceramic
Mounting Type:Through Hole
Response Time:4 ms
Series:0251
Terminal Type:Axial
Voltage Rating:125 VAC/VDC
