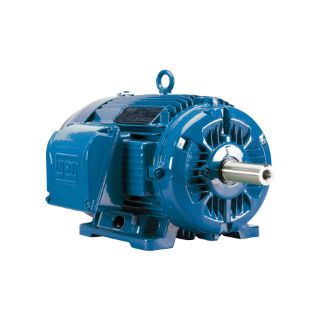

Actual Product May Vary From Image

02512ET3E324T-W22G WEG

Name: 02512ET3E324T-W22G WEG
Brand: WEG
SKU: 02512ET3E324T-W22G WEG
Price: 5,137.00 USD
Availability: OutOfStock

WEG 02512ET3E324T-W22G Continuous-Duty AC Motor With Internal AEGIS® Ring, Totally Enclosed Fan Cooled Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 324/6T Frame, 1180 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 02512ET3E324T-W22G

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5,137.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112709217

Description

WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 25 hp, 208/230/460 VAC, 67.2 to 60.8/30.4 A, 60 Hz Frequency, 3 ph ph, 1180 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 324/6T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 110 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 31.116 in L Dimensions

Application

HVAC Applications

Standards

NEMA MG-1

Features

High starting torque
New ventilation system for improved thermal performance
Robust design
Regreasable bearings
Motor frame painting system 500 hr salt spray resistant

Specifications

Amperage Rating:	67.2 to 60.8/30.4 A
Application Type:	Air Handling Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Dimensions:	31.116 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	324/6T
Frequency Rating:	60 Hz
Horsepower:	25 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Speed:	1180 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	110 ft-lb
Voltage Rating:	208/230/460 VAC
