0251673 FAL

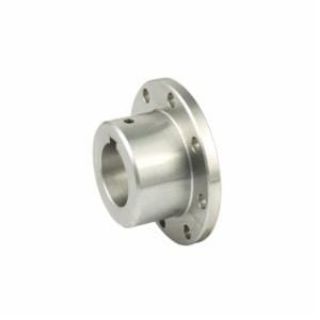

FALK® Steelflex® 0251673 Straight Rough Stock Bore Grid Coupling Hub, 1050T Coupling, 1/2 to 2-3/8 in Dia Bore, 2.38 in Shaft Hub/2.38 in T-Hub Length Through Bore, 3.44 in Shaft Hub/2.62 in T-Hub Dia Hub, Steel
Manufacturer: Rexnord
Manufacturer part number: 0251673
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$124.40

Product Details

Brand Name

FALK®

Type

Straight Rough Stock Bore

Description

Straight bore style-small through hole-rough stock bore shaft hubs for T31:T35 series-spacer couplings. The Steelflex® shaft hubs are utilized on T31 spacer coupling designs. They typically are bored to mount on the connected equipment shafts the motor and pump. The hubs can also be used to mount to shafts for type T35 close connected applications and type R35 half spacer designs.
FALK® Steelflex® Grid Coupling Hub, Straight Rough Stock Bore, 1050T Coupling, 1/2 to 2-3/8 in Bore Dia, 3.44 in Shaft Hub/2.62 in T-Hub Hub Dia, 2.38 in Shaft Hub/2.38 in T-Hub Hub Length, 3600 rpm Maximum, 2.38 in Shaft Hub/2.38 in T-Hub Length Through Bore, Steel

Application

For FALK® Steelflex® type T31/T35 spacer grid couplings

Specifications

Bore Diameter:1/2 to 2-3/8 in
Coupling Size:1050T
Hub Diameter:3.44 in Shaft Hub/2.62 in T-Hub
Hub Length:2.38 in Shaft Hub/2.38 in T-Hub
Length Through Bore:2.38 in Shaft Hub/2.38 in T-Hub
Material:Steel
Maximum Speed:3600 rpm
