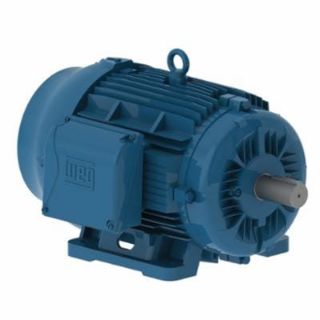

Picture of 02518ET3E284T-W22 WEG
Actual Product May Vary From Image

02518ET3E284T-W22 WEG

WEG 02518ET3E284T-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 284/6T Frame, 1800 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 02518ET3E284T-W22
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,743.00

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101378583
Motion Industries - 04655227

Description

WEG AC Motor, Compressor Motors, Fan & Blower Motors, General Purpose AC Motors Application, 4-Pole, Direct On Line Starting Method Special Features, 25 hp, 208/230/460 VAC, 65.2 to 59/29.5 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 284/6T Frame, 1-7/8 in Dia x 4-5/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 73.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron

Application

Pumps, Compressors, Fans, Packaging Equipment, Chemical Plants, Pulp and Paper, Aggregate, Mining, Cement and Steel Mills

Standards

CE | CSA Certified | UL Listed

Features

4-Pole, Direct On Line Starting Method

Specifications

Amperage Rating:65.2 to 59/29.5 A
Application Type:Compressor Motors, Fan & Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Enclosure Type:Totally Enclosed Fan Cooled
Frame:284/6T
Frequency Rating:60 Hz
Horsepower:25 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Number of Speeds:1
Phase:3
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:1-7/8 in Dia x 4-5/8 in L
Speed:1800 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:73.4 ft-lb
Voltage Rating:208/230/460 VAC
