Actual Product May Vary From Image

02518OT3E284JP-G WEG

Name: 02518OT3E284JP-G WEG
Brand: WEG
SKU: 02518OT3E284JP-G WEG
Availability: OutOfStock

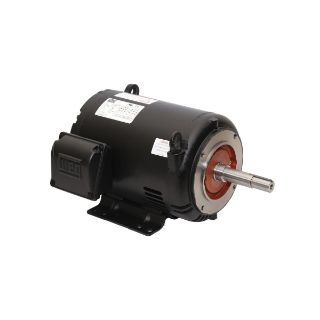

WEG 02518OT3E284JP-G Closed Couple Pump AC Motor With Internal AEGIS® Ring, Open Drip-Proof Enclosure, 25 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 284JP Frame, 1800 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 02518OT3E284JP-G

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump

Alternate Supplier #

Applied Industrial Technologies - 112705343

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump, Jet Pump (JM/JP) Motors Application, 25 hp, 230/460 VAC, 29.9 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Open Drip-Proof Enclosure, 284JP Frame, 1.15 Service Factor, Footed Mounting, 1000:1 Variable Torque Speed, 27.141 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	29.9 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	27.141 in L
Enclosure Type:	Open Drip-Proof
Frame:	284JP
Frequency Rating:	60 Hz
Horsepower:	25 hp
Mounting Type:	Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1800 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
