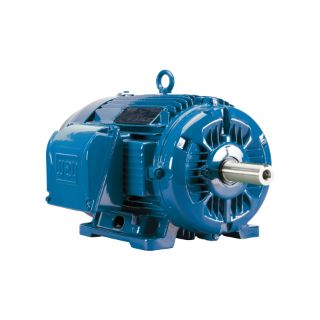

Actual Product May Vary From Image

03018ET3E286T-W22 WEG

Name: 03018ET3E286T-W22 WEG
Brand: WEG
SKU: 03018ET3E286T-W22 WEG
Price: 3,223.00 USD
Availability: InStock

WEG 03018ET3E286T-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 30 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284/6T Frame, 1765 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 03018ET3E286T-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3,223.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101527420
Motion Industries - 04702081

Description

With cast iron frame, flexible mounting, solid feet and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 30 hp, 208/230/460 VAC, 77.6 to 70.2/35.1 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 284/6T Frame, 1-7/8 in Dia x 4-5/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 88.1 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 27.929 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Regreasable bearings
Gasketed conduit box
All cast iron construction, including terminal box and fan cover
IP55 rating
Corrosion proof drains

Specifications

Amperage Rating:	77.6 to 70.2/35.1 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	27.929 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	284/6T
Frequency Rating:	60 Hz
Horsepower:	30 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	1-7/8 in Dia x 4-5/8 in L
Speed:	1765 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	88.1 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
