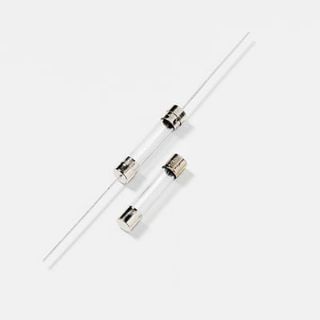

Actual Product May Vary From Image

0312002.HXP LIT

Name: 0312002.HXP LIT
Brand: Littelfuse
SKU: 0312002.HXP LIT
Price: 1.16 USD
Availability: InStock

Littelfuse® POWR-GARD® H312002P Type 3AG Fast Acting Cartridge Fuse, 2 A, 250 VAC, 100 A Interrupt, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: H312002P

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	100
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.16

Qty:

Product Details

Brand Name

Littelfuse®

Type

Type 3AG Fast Acting

Description

The 3AG fast-acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Littelfuse® POWR-GARD® Cartridge Fuse, Lead-Free Type 3AG Fast Acting, Series: 312, Non-Indicating, 2 A, 250 VAC, 100 A Interrupt, 5 s Response, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

CSA File No. LR29862 | ICC Certified | UL 248-14 | UL File No. E10480 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

10 kA at 125 VAC, 100 A at 250 VAC interrupt rating
5 s maximum at 200%, 4 hrs minimum at 100% and 1 hr maximum at 135% opening time

Specifications

Amperage Rating:	2 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cartridge
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 A
Material:	Glass
Mounting Type:	Holder
Response Time:	5 s
Series:	312
Voltage Rating:	250 VAC
