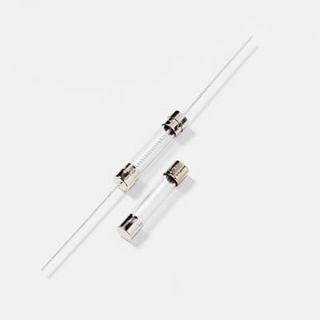

Picture of 0313004.HXP LIT
Actual Product May Vary From Image

0313004.HXP LIT

Littelfuse® Slo-Blo® H313004P Type 3AG Time Delay Cartridge Fuse, 4 A, 250 VAC, 200 A Interrupt, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: H313004P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
89 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.94

Product Details

Brand Name

Littelfuse®

Type

Type 3AG Time Delay

Description

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® fuse design.
Littelfuse® Slo-Blo® Cartridge Fuse, Type 3AG Time Delay, Series: 313, Non-Indicating, 4 A, 250 VAC, 200 A Interrupt, 5 to 30 s Response, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For used as supplementary protection in electronic equipment and appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

UL 248-14 | UL File No. E10480 | CSA File No. 29862 | CE Certified | ICC Approved | PSE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • 313 and 315 series fuses have time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
  • 3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
  • Guesswork and time consuming circuit testing is eliminated
  • This unique design offers the same quality performance characteristics as the standard 3AG fuse design
  • Lead-free
  • 10 kA at 125 VAC, 200 A at 250 VAC interrupt rating
  • 4 hr at 100%, 1 hr at 135%, 5 to 30 s at 200% response time

Specifications

Amperage Rating:4 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cartridge
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 A
Material:Glass
Mounting Type:Holder
Response Time:5 to 30 s
Series:313
Voltage Rating:250 VAC
