0313005.VXP LIT

Name: 0313005.VXP LIT
Brand: Littelfuse
SKU: 0313005.VXP LIT
Price: 10.48 USD
Availability: OutOfStock

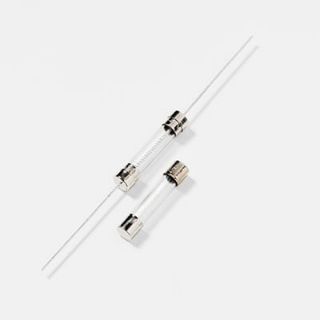

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

313005P

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$10.48 / EA

Description

Brand Name

Littelfuse®

Type

Time Delay

Description

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.

Littelfuse® POWR-GARD® Slo-Blo® Cartridge Fuse, Time Delay, Series: 313, Non-Indicating, 5 A, 250 VAC, 10 kA Interrupt, 4 hr, 1 hr, 5 to 30 s Response, Axial Lead Terminal, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

Standards

UL 248-12 | UL File No. E10480 | CSA 29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
Guesswork and time consuming circuit testing is eliminated
Unique design offers the same quality performance characteristics as the standard 3AG fuse design
Lead-free
Nickel plated brass cap
-55 to 125 deg C operating temperature
10 kA at 125 VAC interrupting rating
4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
0.0214 ohms nominal cold resistance
276 I2T (A2 sec) nominal melting

Specifications

Amperage Rating:	5 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cartridge
Country of Origin:	CA
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Glass
Mounting Type:	Holder
Response Time:	4 hr, 1 hr, 5 to 30 s
Series:	313
Terminal Type:	Axial Lead
Voltage Rating:	250 VAC
