0313.500VXP LIT

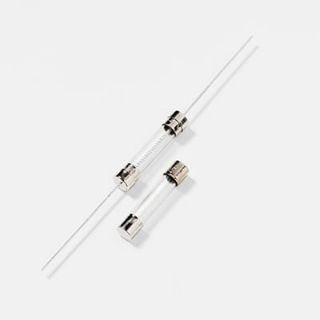

Littelfuse® POWR-GARD® Slo-Blo® 313.500P Time Delay Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class: RK1, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 313.500P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.48

Product Details

Brand Name

Littelfuse®

Type

Time Delay

Description

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
Littelfuse® POWR-GARD® Slo-Blo® Cartridge Fuse, Time Delay, Series: 313, Non-Indicating, 0.5 A, 250 VAC, 10 kA Interrupt, Class: RK1, 4 hr, 1 hr, 5 to 30 s Response, Axial Lead Terminal, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

Standards

UL 248-12 | UL File No. E10480 | CSA 29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
  • 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
  • Guesswork and time consuming circuit testing is eliminated
  • Unique design offers the same quality performance characteristics as the standard 3AG fuse design
  • Lead-free
  • Nickel plated brass cap
  • -55 to 125 deg C operating temperature
  • 10 kA at 125 VAC interrupting rating
  • 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
  • 1.26 ohms nominal cold resistance
  • 2.55 I2T (A2 sec) nominal melting

Specifications

Amperage Rating:0.5 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cartridge
Class:RK1
Country of Origin:CA
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Glass
Mounting Type:Holder
Response Time:4 hr, 1 hr, 5 to 30 s
Series:313
Terminal Type:Axial Lead
Voltage Rating:250 VAC
