033098 DOD

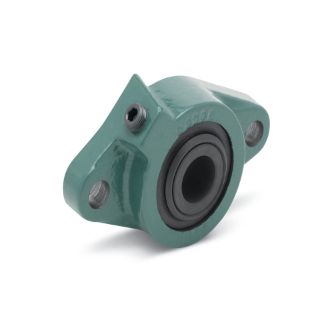

Picture of 033098 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
033098
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$502.06 / EA

Description

Specifications

Bearing Type:Journal
Bolt Diameter:0.5000
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):6.1900
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):6.1900
Bolt to Bolt (Min) (Unit):INCH
Bore Length:2.2500
Bore Length (Unit):INCH
Expansion Capability:Expansion (Float)
Greasable:No
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Flange
Insert Material:Graphite
Lubrication:Self-Lubricated
Shaft Diameter:2.0000
Shaft Diameter (Unit):INCH
Suitable for High Temperature:Yes
Take-Up Frame Size:LD-30

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Baldor-Dodge
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
2 in
