033688 DOD

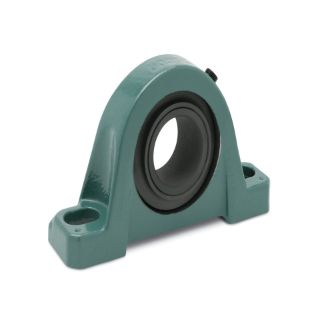

Picture of 033688 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
033688
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$992.63 / EA

Description

Specifications

Base to Center Height:3.5000
Base to Center Height (Unit):INCH
Bearing Type:Journal
Bolt Diameter:0.8750
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):9.5000
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):8.5000
Bolt to Bolt (Min) (Unit):INCH
Bore Length:11.7500
Bore Length (Unit):INCH
Expansion Capability:Expansion (Float)
Greasable:No
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Pillow Block
Insert Material:Graphite
Lubrication:Self-Lubricated
Shaft Diameter:2.9375
Shaft Diameter (Unit):INCH
Suitable for High Temperature:Yes
Take-Up Frame Size:LD-50,TS-350

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Shaft Diameter
2 15/16 in
Type
2 Bolt Pillow Block Ball Bearing
