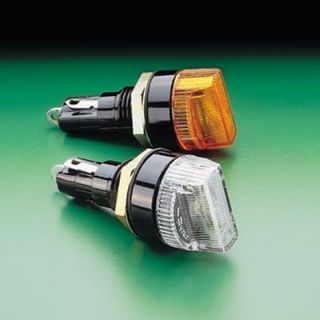

Actual Product May Vary From Image

03440125X LIT

Name: 03440125X LIT
Brand: Littelfuse
SKU: 03440125X LIT
Price: 71.00 USD
Availability: OutOfStock

Littelfuse® 344125A Blown Fuse Indicating Bar Knob Fuse Holder With Blown Fuse Indicator, 125 VAC/VDC, 15 A, 1 Poles

Manufacturer: Littelfuse

Manufacturer part number: 344125A

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$71.00

Qty:

Product Details

Brand Name

Littelfuse®

Type

Blown Fuse Indicating Bar Knob

Description

Littelfuse® Fuse Holder, Blown Fuse Indicating Bar Knob, Series: 344, 125 VAC/VDC, 15 A, 1 Pole, Panel Mount, 32 mm Fuse Length, 6.3 mm Fuse Dia, -40 to 85 deg C, For Use With: 3AG/3AB Series Fuse, Thermoset, Black, 0.94 in Dia x 2.38 in L

Standards

UL E14721 | CSA 7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Copper/copper alloy and tin plated terminals
1500 V minimum dielectric strength
Withstands 15 lb mounting torque
Bayonet style
Low profile bar knob

Includes

Neoprene Washer, Lockwasher, Hex Nut

Specifications

Amperage Rating:	15 A
Color:	Black
Country of Origin:	CA
Dimensions:	0.94 in Dia x 2.38 in L
Fuse Diameter:	6.3 mm
Fuse Length:	32 mm
Material:	Thermoset
Mounting Type:	Panel
Number of Poles:	1
Series:	344
Suitable For Use With:	3AG/3AB Series Fuse
Temperature Rating:	-40 to 85 deg C
Voltage Rating:	125 VAC/VDC
