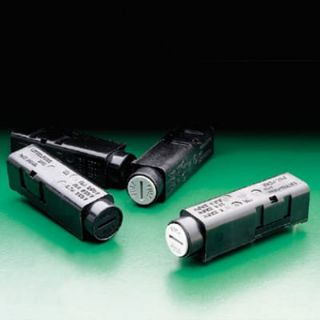

Actual Product May Vary From Image

03453LF2X LIT

Name: 03453LF2X LIT
Brand: Littelfuse
SKU: 03453LF2X LIT
Availability: OutOfStock

Littelfuse® 3453LF2A International Shock Safe Fuse Holder, 250 VAC, 20 A, 1 Poles

Manufacturer: Littelfuse

Manufacturer part number: 3453LF2A

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Type

International Shock Safe

Description

Littelfuse® Fuse Holder, International Shock Safe, Series: 345, 250 VAC, 20 A, 1 Pole, 3/16 in Straight Dual Purpose Solder/Quick-Connect, Panel Mount, 32 mm Fuse Length, 6.3 mm Fuse Dia, -40 to 85 deg C, For Use With: 3AG/3AB and 2AG Series Fuse, Thermoplastic, Black, 0.6 in Dia

Application

For circuit board protection

Standards

RoHS Compliant | UL File No. E14721 | CSA 7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Copper/copper alloy and tin plated terminals
Withstands 15 lb mounting torque
Low profile fingergrip knob
Designed to eliminate the possibility of electrical shock, as defined in IEC standards 65 and 257
Shock safe fuseholders feature a low profile body, fingergrip knob and anti-tease feature that eliminates circuit interruption when knob is accidentally depressed

Specifications

Amperage Rating:	20 A
Color:	Black
Connection Type:	3/16 in Straight Dual Purpose Solder/Quick-Connect
Country of Origin:	CA
Dimensions:	0.6 in Dia
Fuse Diameter:	6.3 mm
Fuse Length:	32 mm
Material:	Thermoplastic
Mounting Type:	Panel
Number of Poles:	1
Series:	345
Suitable For Use With:	3AG/3AB and 2AG Series Fuse
Temperature Rating:	-40 to 85 deg C
Voltage Rating:	250 VAC
