0358 IDE

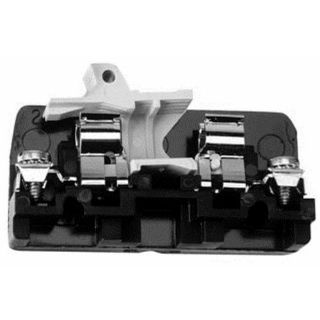

FUSE BLK SC 10 BOX
Manufacturer: Ideal Industries
Manufacturer part number: 0358
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
Price on Request

Product Details

Brand Name

Buchanan

Description

Buchanan; Fuse Block; Amperage Rating: 30 AMP; Voltage Rating: 600 V; Material: Phenolic, Filled, Flame retardant Housing, Copper Alloy Contact, Steel Plated Screw; Mounting: Direct Mount (Flat Base); Size: 13/32 X 1-1/2 IN; Operating Temperature: 302, 15

Standards

MIL-Spec F-15160, CSA, RU, UL Listed, RoHS

Features

Features: Provide In-Line Circuit Protection For Any Circuit Or Group Of Circuits; Three Contact Styles For Terminated Or Unterminated Wire Are Conservatively Rated To 30A; Remove, Check And Replace Fuses Safely And Quickly Switch-Action Fuse Blocks Open Circuits Before Fuse Can Be Removed Or Installed; Good Circuit Density When Mounted Adjacently 91 Circuits Per 6 Foot Length; Use In High Temperature Applications Phenolic Housing Withstands Temperatures Up To 302°F (150°C); Flat Base Models For Surface Mounting, Dovetail Base Models For Standard Channel; Only One End Section Needed Per Block Assembly; Open Or Close Several Circuits Simultaneously Holes In Puller Handles Allow Use Of Nylon Ganging Rods; Readily Identifiable Circuits Mark Directly On White, Matte-Surface Puller Assembly, Marking Tab On Block Or Use Removable Marking Tape; Sections Snap-Fit With Heavy Duty And Intermediate Heavy Duty Blocks; Accepts #22 To #8 AWG; Rated 30A; Contact Type: Strap Clamp; Wire Size: #18 To #8; Wire Strip Length: 1/2 IN; Frequency: 60 HZ; Breakdown Voltage: 8400 VAC; Dielectric Strength (rh40% At Sea Level): 300 V/MIL Thickness (Per ASTM D149); Ul High Voltage Arc Testing: 0.49 - 0.58 IN/MINT; Water Absorption (24 Hr Pct Weight Gain): 0.45 PCT (Per ASTM D570); Flammability: 94V-1 (Per UL94); Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343); Radiation Resistance (ergs G1 C): 2.7 X 10 Power 7 Min; Center-to-center Spacing: 0.750 IN CL: 16 Circuits Per Foot; Fuse Type: Ferrule-Type Cartridge; Includes: Puller, Strap Clamp

Specifications

Amperage Rating:30 AMP
Material:Phenolic, Filled, Flame retardant Housing, Copper Alloy Contact, Steel Plated Screw
Mounting:Direct Mount (Flat Base)
Operating Temperature:302, 150 DEG F/C
Size:13/32 X 1-1/2 IN
Voltage Rating:600 V
