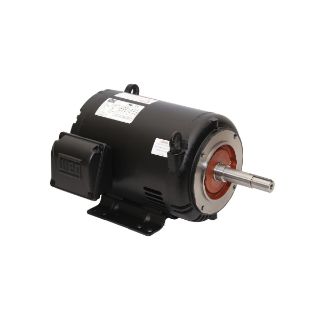

Actual Product May Vary From Image

04012OT3E364JP WEG

Name: 04012OT3E364JP WEG
Brand: WEG
SKU: 04012OT3E364JP WEG
Availability: OutOfStock

WEG 04012OT3E364JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 40 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 364/5JP Frame, 1200 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 04012OT3E364JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 116371196
Motion Industries - 04865113

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 40 hp, 230/460 VAC, 47.1 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 364/5JP Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 32.019 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	47.1 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	32.019 in L
Enclosure Type:	Open Drip-Proof
Frame:	364/5JP
Frequency Rating:	60 Hz
Horsepower:	40 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1200 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
