Name: 040803 DOD
Brand: Dodge
SKU: 040803 DOD
Price: 3,726.63 USD
Availability: OutOfStock

040803 DOD

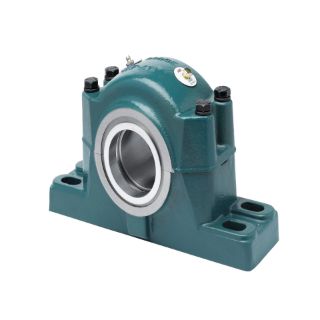

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

040803

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$3,726.63 / EA

Description

Specifications

Base to Center Height:	6.0000
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	16.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	14.5000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.2500
Bolt Width (Unit):	INCH
Bore Length:	7.5000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	170000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1800
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Shaft Attachment:	Tapered Adapter
Shaft Diameter:	4.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	200000
Static Load Capacity (Unit):	POUND_FORCE
