047AT30-2EA1D DIC

Name: 047AT30-2EA1D DIC
Brand: Dichtomatik
SKU: 047AT30-2EA1D DIC
Availability: OutOfStock

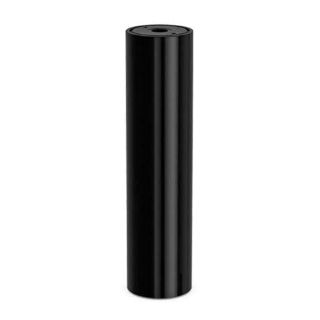

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

047AT30-2EA1D

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

DICHTOMATIK

Description

The wide variety and versatility of our Piston Accumulators allows their use in over 90% of all potential applications. Proven durability and performance deliver freedom from potential bladder failure. From volumes of a few cubic inches to hundreds of gallons and up to 20000 psi MAWP (1380 bar), the piston type hydro-pneumatic accumulator can meet the diverse needs of industry with standard or custom designs, a comprehensive selection of gas and fluid connections, and a wide range of materials, seal types, and configurations.

DICHTOMATIK Piston Accumulator, Series: AT Series, 2 pt Fluid Volume, 69 cu-in Gas, 4-3/4 in OD Dia, 11-1/4 in Height, 3000 psi, SAE-16 Inlet, -20 to 200 deg F, Steel

Application

Construction, Energy, Fluid Power, Agriculture, Automotive Applications, Suspension, Oil and Gas Industries

Standards

ASME/NB | CE/PED | SELO

Features

Customizable designs
Rapid production of prototypes
The engineering process is optimized to meet the specific requirements of the given application
High-quality seal material with low permeation
Fully automatic assembly procedure
Possibility of a high piston speed
Small hysteresis
High durability and low maintenance
Compact design
Threaded gas head, welded fluid head piston accumulator

Includes

EPR Seal and N2 Gas Valve

Specifications

Diameter:	4-3/4 in OD
Fluid Volume:	2 pt
Gas Volume:	69 cu-in
Height:	11-1/4 in
Inlet Size:	SAE-16
Material:	Steel
Pressure Rating:	3000 psi
Series:	AT Series
Temperature Rating:	-20 to 200 deg F
