048008 DOD

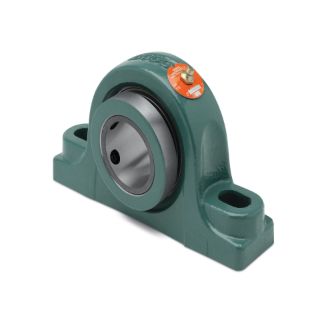

Picture of 048008 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
048008
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,555.58 / EA

Description

Specifications

Base to Center Height:2.7500
Base to Center Height (Unit):INCH
Bearing Component:Mounted Bearing
Bearing Type:Spherical Roller
Bolt Diameter:0.6250
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):7.4400
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):6.8100
Bolt to Bolt (Min) (Unit):INCH
Bore Length:2.2000
Bore Length (Unit):INCH
Dynamic Load Capacity:39000
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease XHP222
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Pillow Block
Insert Material:Steel
Lubrication:Grease
Maximum Speed:1900
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Shaft Attachment:Setscrew
Shaft Diameter:2.5000
Shaft Diameter (Unit):INCH
Static Load Capacity:47500
Static Load Capacity (Unit):POUND_FORCE
Take-Up Frame Size:HD-200,LD-40

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
ABB
Measuring Units
Inch
Shaft Diameter
2 1/2 in
Type
2 Bolt Pillow Block
