048041 DOD

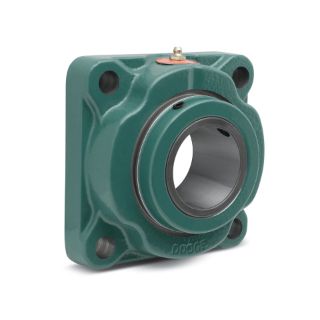

Picture of 048041 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
048041
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,624.66 / EA

Description

Specifications

Bearing Component:Mounted Bearing
Bearing Type:Spherical Roller
Bolt Circle:6.7500
Bolt Circle (Unit):INCH
Bolt Diameter:0.6250
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):4.7800
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):4.7800
Bolt to Bolt (Min) (Unit):INCH
Bolt Width:4.7800
Bolt Width (Unit):INCH
Bore Length:2.2000
Bore Length (Unit):INCH
Dynamic Load Capacity:39000
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease XHP222
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Four-Bolt Flange
Insert Material:Steel
Insert Outer Diameter:120.0000
Insert Outer Diameter (Unit):MILLIMETER
Lubrication:Grease
Maximum Speed:1900
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Shaft Attachment:Setscrew
Shaft Diameter:2.4375
Shaft Diameter (Unit):INCH
Static Load Capacity:47500
Static Load Capacity (Unit):POUND_FORCE

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
ABB
Measuring Units
Inch
Shaft Diameter
2 7/16 in
