0481002.VXL LIT

Name: 0481002.VXL LIT
Brand: Littelfuse
SKU: 0481002.VXL LIT
Price: 17.74 USD
Availability: OutOfStock

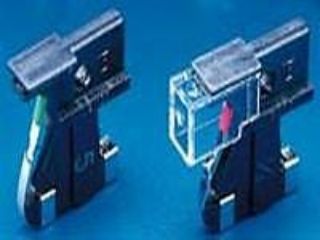

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

0481002.VXL

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$17.74 / EA

Description

Brand Name

Littelfuse®

Type

Fast Acting

Description

481 series alarm indicating fuses are designed to reduce down time by immediately pinpointing the blown (open) circuit while triggering an LED or audio alarm. This item requires 482 series mating fuse holder. All ranges of 481 series fuses are available as our original design and the 2 to 20 A range is now available as a RoHS compliant option (use the "P" designator when ordering).

Littelfuse® Alarm Indicating Fuse, Fast Acting, Series: 0481, Indicating, 2 A, 125 VAC/VDC, 300 A Interrupt, 10 min Response, Quick-Connect Terminal, Snap-In Mounting, Flat Body, Polyphenylene Sulfide, Orange, 0.77 in H x 0.84 in W x 0.23 in D Body

Application

For telecommunications, control panel circuits and generator controls and protection

Standards

UL File No. E71611 | CSA 29862 | UL 94-V-0 Flammability Rating | PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Color coded indicator flags indicate ampere rating
Body is constructed of black polyphenylene sulfide with UL 94-V0 flammability rating, contacts are of bright alloy plated beryllium copper
Eliminates downtime by immediately pinpointing the blown (open) circuit while triggering LED or audio alarm, while placed in mating holder
10 min at 100%, 5 min at 150% response time

Specifications

Amperage Rating:	2 A
Body Size:	0.77 in H x 0.84 in W x 0.23 in D
Body Type:	Flat
Color:	Orange
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	300 A
Material:	Polyphenylene Sulfide
Mounting Type:	Snap-In
Response Time:	10 min
Series:	0481
Terminal Type:	Quick-Connect
Voltage Rating:	125 VAC/VDC
