Home / 049496 DOD

049496 DOD

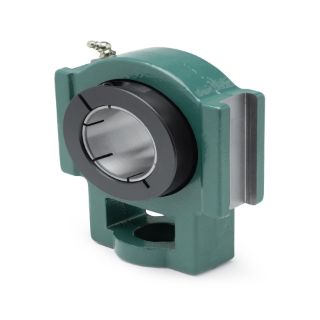

Picture of 049496 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
049496
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$179.72 / EA

Description

Specifications

Ball Bearing Series:206 Series
Bearing Type:Ball
Bore Length:1.5600
Bore Length (Unit):INCH
Dynamic Load Capacity:4368
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Wide-Slot Take-up
Insert Material:Steel
Lubrication:Grease
Maximum Speed:5500
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Clamp Collar
Shaft Diameter:30.0000
Shaft Diameter (Unit):MILLIMETER
Standoff Housing:No
Static Load Capacity:2538
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No
Take-Up Frame Size:WS-308

Resources

Tech BulletinEngineering DrawingInstallation
