Name: 049737 DOD
Brand: Dodge
SKU: 049737 DOD
Price: 284.53 USD
Availability: OutOfStock

049737 DOD

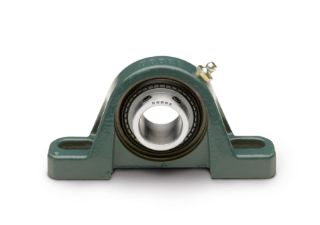

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

049737

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$284.53 / EA

Description

Specifications

Ball Bearing Series:	212 Series
Base to Center Height:	2.6900
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.9400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.8800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.3100
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	No
Grease Name:	MobilGrease FM222
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2000
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-40,TS-300
