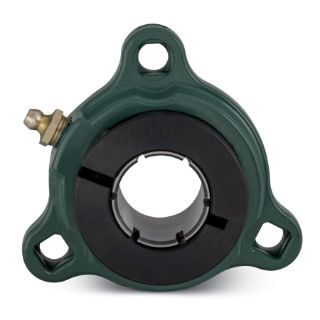

049930 DOD

Name: 049930 DOD
Brand: Dodge
SKU: 049930 DOD
Price: 115.06 USD
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

049930

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$115.06 / EA

Description

Ball Bearing Series:	206 Series
Bearing Type:	Ball
Bolt Circle:	3.5600
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.4063
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	3.5600
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.5600
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.5600
Bore Length (Unit):	INCH
Dynamic Load Capacity:	4368
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Alloy
Housing Type:	Three-Bolt Flange (Light Duty)
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	5500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Clamp Collar
Shaft Diameter:	1.1250
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	2538
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
