05012OT3E365T-G WEG

Name: 05012OT3E365T-G WEG
Brand: WEG
SKU: 05012OT3E365T-G WEG
Availability: OutOfStock

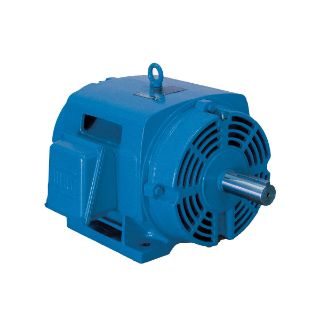

WEG 05012OT3E365T-G AC Motor With Internal AEGIS® Ring, Open Drip-Proof Enclosure, 50 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 364/5T Frame, 1200 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 05012OT3E365T-G

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 113856520

Description

WEG AC Motor, Air Handling Motors, General Purpose HVAC Motors Application, 50 hp, 230/460 VAC, 58.8 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 364/5T Frame, 1.15 Service Factor, Ball Bearing, Footed Mounting, Insulation Class: Class F, 29.764 in L Dimensions

Application

HVAC Applications

Features

High starting torque
New ventilation system for improved thermal performance
Robust design
Regreasable bearings
Motor frame painting system 500 hr salt spray resistant

Specifications

Amperage Rating:	58.8 A
Application Type:	Air Handling Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Dimensions:	29.764 in L
Enclosure Type:	Open Drip-Proof
Frame:	364/5T
Frequency Rating:	60 Hz
Horsepower:	50 hp
Insulation Class:	Class F
Mounting Type:	Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1200 rpm
Voltage Rating:	230/460 VAC
