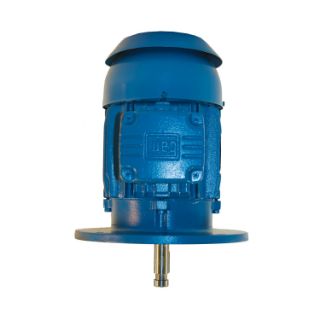

Actual Product May Vary From Image

05036ET3E324HP-W22 WEG

Name: 05036ET3E324HP-W22 WEG
Brand: WEG
SKU: 05036ET3E324HP-W22 WEG
Availability: OutOfStock

WEG 05036ET3E324HP-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 50 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 324HP Frame, 3600 rpm Speed, P-Base Mount

Manufacturer: WEG

Manufacturer part number: 05036ET3E324HP-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112704860

Description

WEG AC Motor, Fire Pump Motors Application, 50 hp, 230/460 VAC, 55.5 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 324HP Frame, 1.25 Service Factor, Ball Bearing, P-Base Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 33.037 in L Dimensions

Standards

NEMA PremiumÂ®

Features

Suitable for dusty and moist environments providing high starting torque
Stainless steel nameplate laser etched with high contrast background
Regreasable bearings
Gasketed conduit box
NPT threaded terminal box

Specifications

Amperage Rating:	55.5 A
Application Type:	Fire Pump Motors
Bearing Type:	Ball
Dimensions:	33.037 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	324HP
Frequency Rating:	60 Hz
Horsepower:	50 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	P-Base
Phase:	3 ph
Service Factor:	1.25
Speed:	3600 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
