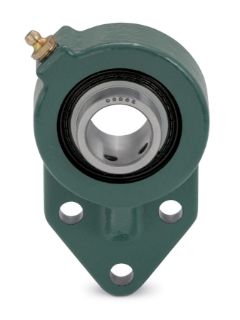

Picture of 051774 DOD
Actual Product May Vary From Image

051774 DOD

FB-SC-100-NL
Manufacturer: Dodge
Manufacturer part number: 051774
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$129.06

Product Details

Specifications

Ball Bearing Series:205 Series
Bearing Type:Ball
Bolt Diameter:0.3750
Bolt Diameter (Unit):INCH
Bore Length:1.3400
Bore Length (Unit):INCH
Dynamic Load Capacity:3146
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:No
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Flanged Bracket
Insert Material:Steel
Lubrication:Grease
Maximum Speed:4500
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Setscrew
Shaft Diameter:1.0000
Shaft Diameter (Unit):INCH
Standoff Housing:No
Static Load Capacity:1769
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No

Resources

Tech BulletinEngineering DrawingInstallation
