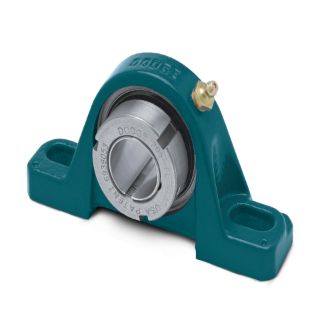

Actual Product May Vary From Image

064740 DOD

Name: 064740 DOD
Brand: Dodge
SKU: 064740 DOD
Price: 1,549.68 USD
Availability: OutOfStock

P2B-GTMAH-307-LL

Manufacturer: Dodge

Manufacturer part number: 064740

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,549.68

Qty:

Product Details

Base to Center Height:	4.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt to Bolt (Max):	11.6200
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	10.3200
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.7200
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3800
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	3.4375
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-50
