066228 DOD

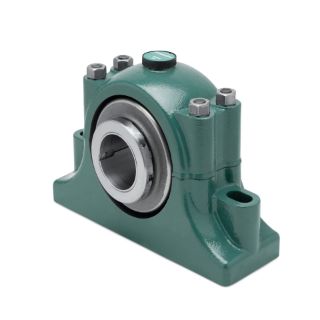

Picture of 066228 DOD

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

066228

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Specifications

Base to Center Height:	3.1300
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.9400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	7.5600
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.1300
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3000
Maximum Speed (Unit):	RPM
Seal Type:	Piston Ring
Shaft Attachment:	Tapered Adapter
Shaft Diameter:	1.6250
Shaft Diameter (Unit):	INCH
Take-Up Frame Size:	HD-200

Resources

Brochure Tech Bulletin Engineering Drawing Installation
